Campaign Manager - Campaign Manager (Silverlight)


Example: Column Axis Settings

Charts and grids that contain multiple dimensions can have many rows and columns for each combination of dimension value.

For example, when displaying a count of households by Title and Gender, possible row combinations could be:

  • Gender = "Female",
  • Title = "Mrs",
  • Gender = "Female"
  • Title = "Miss"
  • and so on.

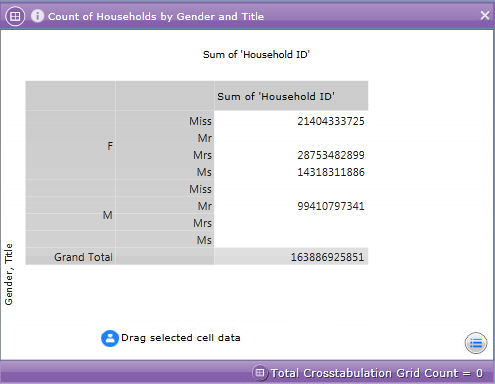

Set the Advanced Column / Row Axis settings to Complete to display every possible combination of dimension values on your grid or chart. For example:

However, as illustrated above this can result in combinations of data being displayed that are not possible, for example Gender = "Male", Title = "Mrs". As such, the default Row / Column value is set to 'Normal' which means that an inferred hierarchy is created in which only valid combinations are displayed. For example:
